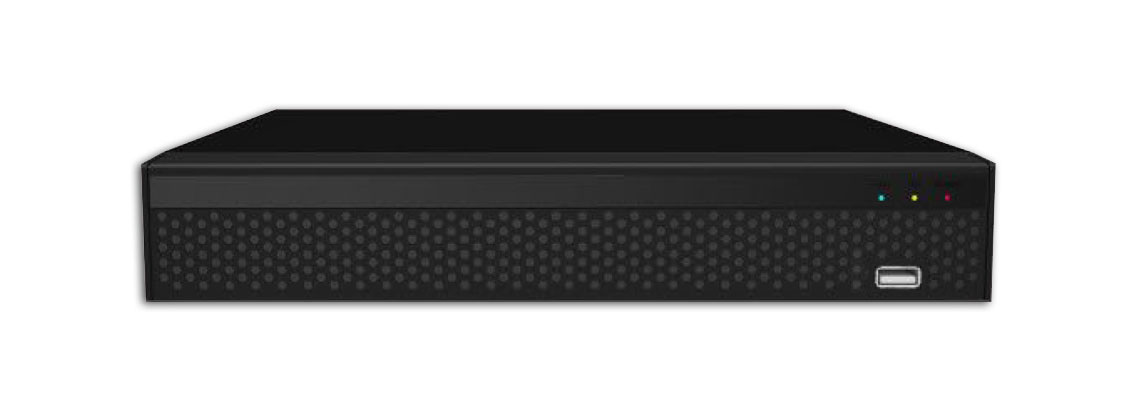

Model

XVR2004D

System

Main Processor

HI3520DV200

Operating System

Embedded LINUX

Video

Analog: 4*1080N

Input

Analog+Network: 2*Analog(1080N)+4*network

Network: 9*1080P/960P/720P(Total incoming bandwidth ≤46M)

Input

4CH BNC

Signal Type

Analog/AHD/CVI/TVI 2.0/Network

Output

1HDMI,1 VGA, 1CVBS

Audio

Input

4 Channel, RCA

Two-way Audio

NO

Output

1 Channel, RCA

Alarm

Sensor Input

NO

Output

NO

Motion Detection

4 Channel(max 9 Channel in pure network mode)

Trigger Events

Recording, Email, Screen tips, Buzzer

Email Alarm

Send Image to The Designated E-mail

PTZ

Interface

RS485

Protocol

Pelco-D, Pelco-P

Baud Rate

110~921600

Address

0~255

Display

VGA

resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

HDMI

resolution:1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz

Display Split

9 Channel/4 Channel / 1Channel

Privacy Masking

1 Rectangular Zones (Each camera)

OSD

Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression

H.264

Audio Compression

G.711u

Resolution

Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)

Video Quality

worst/worse/ordinary/well/best

Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)

Record Rate

Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps

NTSC:1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps

Record Mode

Manual\Timer\Motion Detection\alarm

Playback & Backup

Decode Capability

2CH 1080P@30fps

Pure Analog: 4CH 1080N@25fps

Sync Playback

Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps

Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps

Remote Playback

1Channel

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Rewind

Smart Phone Playback

4 Channel

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP

DDNS

Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

Web Browser

IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software

Support Windows 7/ Windows 8/Windows 10

Extra Stream

CIF(1~25fps)

Smart Phone

iPhone, ipad, Android ,Android pad

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

1 SATA Hard Disk Interface (3.5" SATA, Up to 6TB)

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa

German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

UTC Control

YES

USB Interface

2 USB 2.0 Interfaces

Power consumption

DC 12V ≤6W (Without Hard Disk)

Working Environment

-10~55℃/10~90%

Dimension (W×D×H)

260*215*43(mm)

Weight

2kg (Without HDD)
